| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||

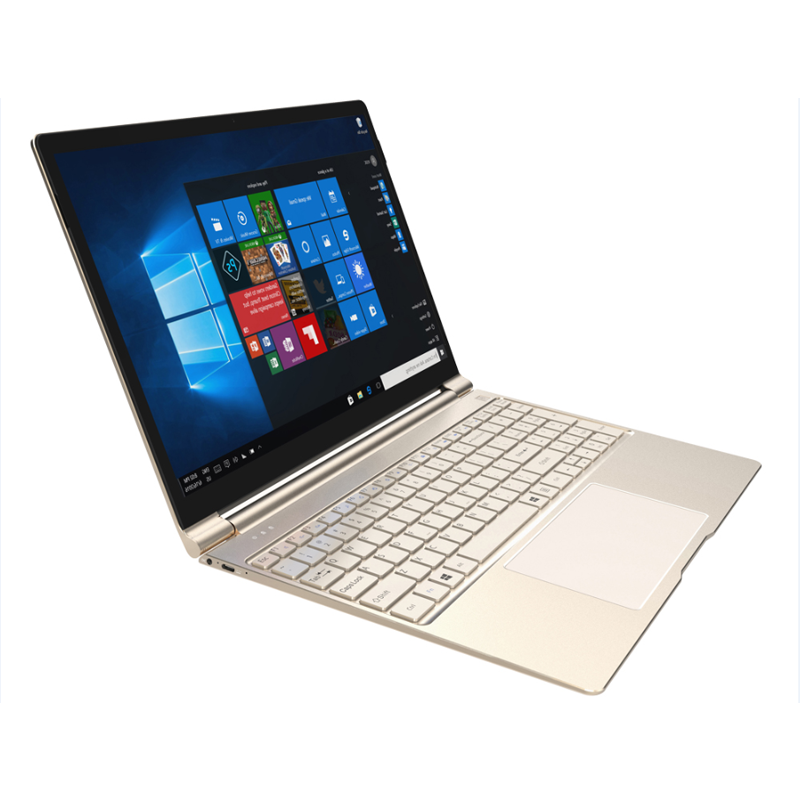

| Product Form | Form Factor | NoteBook | ||||
| Dimensions | 286*192*13.6mm | |||||
| Weight | 1.2kg | |||||
| LCD | Screen Size | 11.6" 16：9 | ||||
| Screen Resolution | 1920*1080 IPS | |||||
| TP | Touch Module | / | ||||
| Battery | Type | Lithium-ion polymer battery 7.4v /7.6v | ||||
| Capacity | 4000mAh | |||||
| Working Time | 6-8 hours | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Cherry Trail,Z8350 (Quad-core ) Apollo Lake Celeron DCor QC,N3350/N3450/N4200 Intel Gemini Lake ,4000/N4100/N5000 Kaby lake 7Y30/7Y54/7Y75 Intel Kaby Lake-R U42& Kaby Lake-U22 Intel® Core™i3-GEN3/GEN5/GEN6/GEN8 Processor Intel® Core™i5-GEN3/GEN5/GEN6/GEN8 Processor Intel® Core™ i7-6500U6700HQ Processor |
||||
| Speed | Up to2.4GHZ(2 cores) Up to2.2GHZ(4 cores) |
|||||
| GPU | Type | Intel® HD Graphics 500 | ||||
| Memory | Capacity | LPDDR3 2G/3G/4G /8G（Optional） | ||||
| Storage | Capacity | eMMC 16GB/32GB/64GB /128GB（Optional） | ||||
| SSD | SSD | 64GB/128GB/256B | ||||
| HDD | HDD | 120GB/240GB/500GB/1TB | ||||
| Camera | Front | 0.3M/2.0M | ||||
| Rear | / | |||||
| Speaker | Built-in | Built-in stereo speakers 8R/1.0W*2 | ||||
| G-sensor | Built-in | / | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module | WIFI 802.11b/g/n&ac/a/b/g/n+BT | ||||
| 3G/LTE | Built-in | / | ||||
| Bluetooth | BT Module | Bluetooth4.0 | ||||
| Ethernet Network | External Dongle | Supportive | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Memory Card Slot | External Memory | 1x miniSD scard up to 64GB | ||||
| SIM Card Slot | Data Storage | / | ||||
| USB Interface | Support Data Transfer | Support USB3.0*2+Type-C*1 | ||||
| Headphone Jack | Music Output | ∮ 3.5mm standard headphone jack | ||||
| HDMI Interface | Video Output | Micro HDMI D Type | ||||
| Keyboard | Input Device | USB、BT Expuntable Wired / Wireless Supportive | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | Standard Configuration | DC 12V/3A | ||||
| USB Cable | Standard Configuration | Host | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Operating System | Android Version | / | ||||
| Windows | Windows 10 | |||||
