| Project Info | Description | Remark |

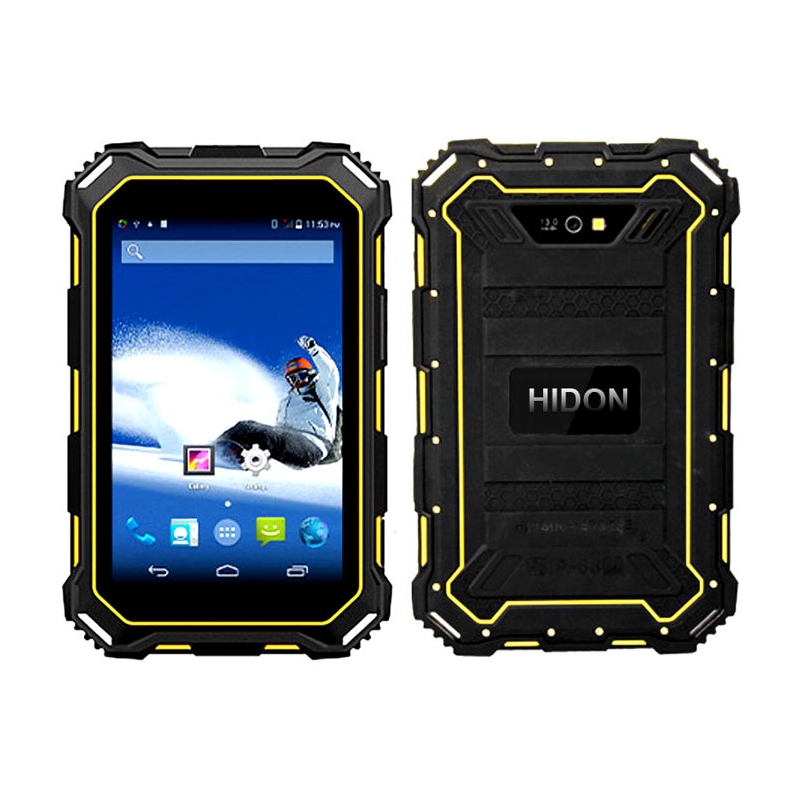

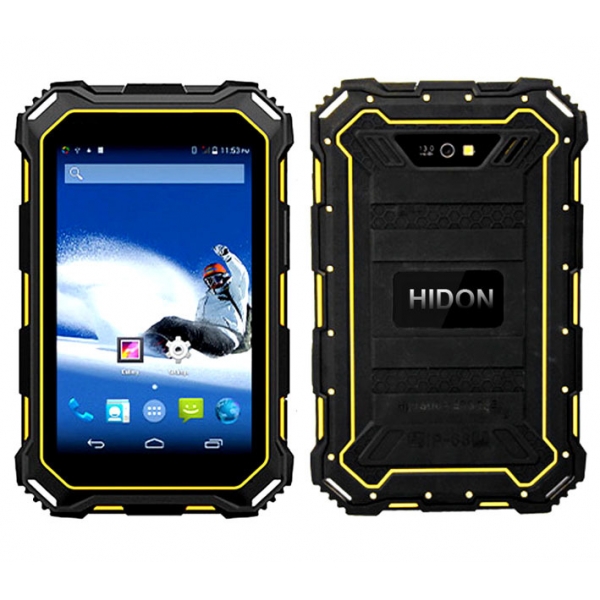

| Name of project | R701 Rugged Tablet | |
| Market Orientation | Three-Prevention PAD | |
| Features | 1.Tablet PC, IP67 2.smartphone Android OS 4.4.4 3. single SIM card,7.0"HD capacity touch panel |
|
| General Info | Description | Remark |
| Spec | ||
| Appearance | Candy Bar Type | |
| Dimension | 215.56*135.8*18.9 mm | |
| Weight | 628g | |
| Hardware Info | Description | Remark |
| MTK Chipset | MT8732VC Quad-core ,1.3HZ | |
| Screen | 7.0" HD IPS | |
| Resolution | 800（H)X1280(V) | |
| Touch panel | CTP (G+ G) | |
| SIM card slot | Dual sim card slot | |
| 2G频率 | 2,3,5,8 | |
| WCDMA | B1,B2,B3,B8 | |
| TDS | Band34,39 | |
| TDD | Band38,39,40,41 | |
| FDD | B1,B3,B7 | |
| Memory | ||
| ROM | 8G/16G | |
| RAM | 1G/2G | |
| Camera | ||
| Front camera | 200W | |
| Back camera | 1300W | |
| Data communication | ||
| Bluetooth | Yes，4.0(MTK Four in one) | |
| Wifi | Yes IEEE 802.11 b/g/n | |
| NFC | Yes | |
| FM | Yes | |
| USB disk | Yes | |
| Memoriy Card | Micro-SD（Up to 32G）, | |
| Sensor | ||
| G-sensor | Yes | |
| Three axis gyroscope | Yes | |
| The distance/light sensor | Yes | |
| Geomagnetic sensor | Yes | |
| other | ||
| GPS | Yes | |
| AGPS | Yes | |
| BDS | 0ptional | |
| Touch | Shared with flashlight | |
| Loudspeaker | Class K power amplifier φ23Loudspeaker | |
| Keypad | ||
| Function Key | 3 keys : menu key, back key, home key, | |
| Side Key | 3 keys: 2 volume key, power key, camera key, Reset key | |
| Battery | ||
| Capacity | 7000 mAh Li-ion battery | |
| Interface | ||
| USB | Yes，Micro USB 5pin | |
| Earphone | Yes，3.5mm | |
| Charger | Yes, Same as USB port | |
| OTG | support mouse support keyboard | |
| Language | ||
| Default | Yes Multinational | |
| Call Function | ||
| Scene | Yes | |
| Multimedia | ||
| Media Player(MP3、MP4) | Yes | |
| Network application | Local search,3W browser,Weather forecast,Google search,Google Map,Navigation,G-mail,Market,Google Talk,Adobe flash player | |
| VPN | Yes | |
| recording | Yes | |
| Stereo headset | Yes | |
| HEVC decoder 1080p@30fps H264 decoder:Baseline 1080p@30Fps/40Mbps H264 decoder:Main/high profile 1080p@30Fps/40Mbps Sorenson H.263/H.263 decoder:1080p@30Fps/40Mbps MPEG-4 SP/ASP decoder:1080p@30Fps/40Mbps DIVX4/DIVX5/DIVX6/DIVXHD/XVID decoder:1080p@30Fps/40Mbps MPEG-4 encoder:Simple profile D1@30fps H.263 encoder:Simple profile D1@30fps H264 ecoder:high profile 1080p@30Fps HEVC encoder:Main profile 720p@30fps |
MP3,MIDI,AMR,AAC, | |
| Audio content sampling rates supported:8kHZ to 192kHz __Audio content sample formats supported: 8-bit/16-bit/24-bit, Mono/Stereo __Interfaces supported: I2S, PCM __ External CODEC I2S interfaces supports 16-bit/24-bit, Mono/Stereo, 8KHZ to 192KHZ. __ 4-band IIR compensation filter to enhance loudspeaker responses __ Proprietary audio post-processing technologies: BesLoudness (MB-DRC), BesSurround, Androrid built-in post processing __Audio encoding: AMR-NB, AMR-WB, ACC, OGG, ADPCM __Audio decoding: WAV, MP3, MP2, AAC, AMR-NB, AMR-WB, MIDI, Vorbis, APE, AAC-plus v1, AAC-plus v2, FLAC, WMA, ADPCM — Voice wakeup |
Yes | |
