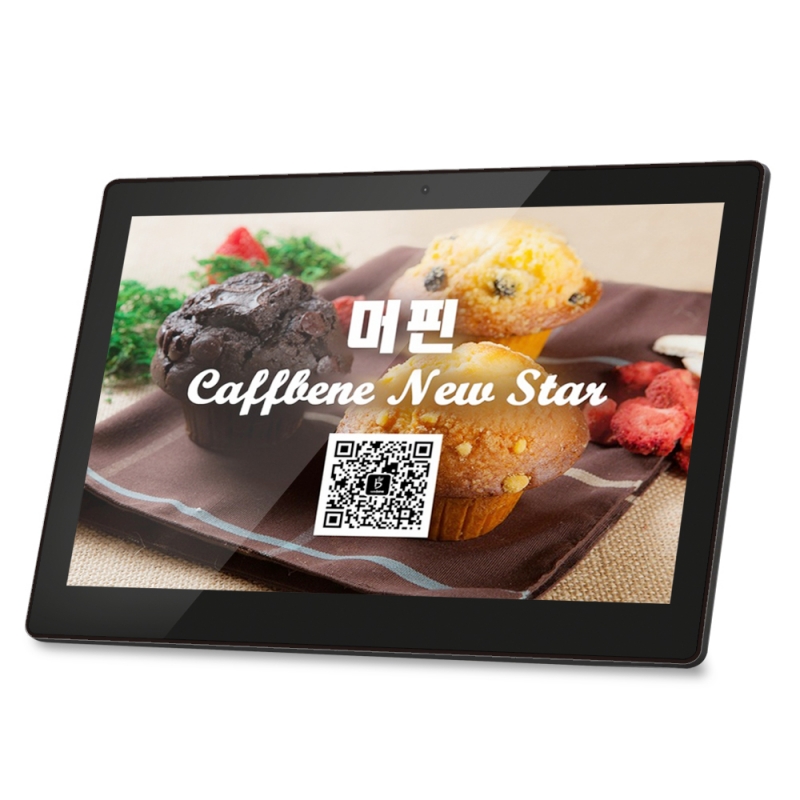

TPS1020T -10.1 inch android AIO

●CPU:A33/A64/A83/RK3126/RK3328/RK3368/RK3399 /MT8163/MT8167/MT8173/MT8176  Quad Core Cortex A7@1.5GHz 64Bits
●OS: Andriod OS  6.0-7.0-8.0 - 8.1-9.0
●LCD module: 10‘‘1280*800/1920*1200   IPS Screen
●RAM:1GB/2GB
●Hard Disk: 8GB/16GB/32GB Nand Flash
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth Bluetooth 4.0
3G/4G Support external 3G/4G USB dongle
Inquire Now Prev Product

    Display
    Screen
    10.1 inch IPS screen

    Resolution
    1280×800/1920*1200 IPS

    Brightness
    350 cdm2

    Contrast
    1000

    Screen scale/Display area
    16:10/ Display area : 218×135mm

    Configuration
    CPU
    RK3368  eight core processor, clocked 2.0G

    RAM
    1GB/2GB

    ROM
    8GB/16GB

    System
    Android 6.0/7.0

    Network
    WIFI
    802.11b/g/n

    Ethernet
    Supports connection to the RJ45 network interface

    Bluetooth
    Bluetooth 4.0

    3G/4G
    Support external 3G/4G USB dongle

    Jack
    SD
    1×SD card slots (max support 32GB)

    Mini USB
    1×USB OTG (through it to debug the machine, brush the system program)

    USB 2.0
    3×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)

    RJ45
    1×RJ45 network interface

    Earphone
    1×3.5mm headphone jack

    Power
    1×4.0mm power DC jack

    Multi-Media
    Video
    Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)

    Audio
    Support MP3, WMA, AAC and so on

    JPEG、JPG

    Other parameters
    Wireless mouse keyboard
    Support

    Speaker
    2×2W speakers

    Camera
    Standard 200W pixel camera (500W pixel camera optional)

    OSD language
    Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations

    Software support
    Free installation applications (maps, games, e-mail, self developing apps, etc.)

    Attachment
    Adapter
    One, specifications: 5V/2A or 12V/1A

    Desktop Bracket
    One

    Remote control
    No

    User‘s Manual
    One

    Theftproof cover plate
    One, (can cover insert devices, such as U disk or SD card, to prevent theft)
