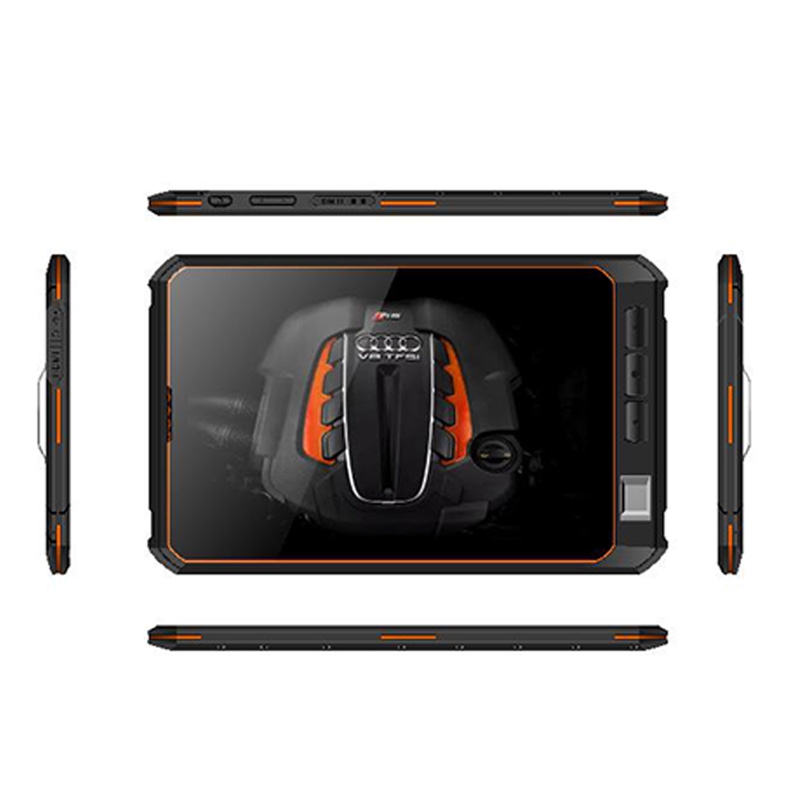

TPS102-10.1inch window Rugged tablet pc

CPU: Intel Atom X5-Z8350 Quad-core Turbo 4g 1.8GHz;
2.Operation System: Original Windows 10 Home OS
3.Display & Touch Screen: 10inch Capacitive Multi-touch IPS screen,1280*800 Pixels;420cd/m2,normal sunlight readable; If super-bright sunlight readable,adding AR FILM is optional.
4.Two Cameras: Front 2.0M camera, Back 8.0M camera;
5.Memory & Storage: 2Gram DDR+ 32G EMMC;   4GB+32GB/4GB+64GB is option.
6.Wireless network: 802.11b/g/n/ac wireless (2.4G/5GDual-band wifi) and Bluetooth4.0;
7.Battery: Built-in 3.7V/9500mAh Lithium Battery
8.I/O Ports: 1*Micro USB,1*USB2.0 Host,1*micro HDMI Port,1*DC port,1*earphone jack,1*Sim Card Slot,1*TF card slot Support SDHC/SDXC;
9.Rugged Durability: Waterproof and dustproof rate:IP68 Three -anti   slim   rugged  tablet
10.OTG:support  U disk, mouse, keyboard
11.GPS+GLONASS:Support
12.NFC: support
13.support G-sensor/Light sensor/Sensing distance ;barcode scanner:Honeywell  optional
14.flashlight:support
15.ID card recognition  by software:support  optional
16:Fingerprint: Domestic/FBI  /commercial fingerprint   optional
Inquire Now Next Product
    Project Info Description
    project name TPS10
    Market positioning IP68  Three -anti   slim   rugged  tablet
    General Info Description
    size 285*173*14mm
    weight ~900g
    Hardware Info Description
    chip Intel Atom X5-Z8350  4G Quad-core 1.84GHZ
    frequency GSM:900+1800 WCDMA:900+2100;(UL:5.76Mbps,DL:21Mbps                                                  GSM:850+1900 WCDMA:850+1900  Optional                                                        4G-LTE: band 1,3,7,20   or  band 2,4,5,7,17
    GPRSWAPMMS support
    EDGE support
    HSPA support
    Memory
    RAM+ROM 2G+32G         4GB+32GB/4GB+64GB
    Data communication
    Bluetooth BT4.0
    Wifi 802.11b/g/n support 2.4/5.0 GHz,dual band WIF
    NFC support
    FM support
    USB data transfer V2.0
    ID card recognition  by software support  optional
    Fingerprint Domestic/FBI  /commercial fingerprint   optional
    Face recgonition support  optional
    storage card Support Micro-SD card (Max 128G)
    OTG support  U disk, mouse, keyboard
    Sensor
    G-sensor support
    Light sensor support
    Sensing distance support
    other
    barcode scanner Honeywell  optional
    Pogo pin 1 group
    GPS+GLONASS support
    Independent headphones on support,3.5mm
    flashlight support
    speaker 8Ω / 2.5W fidelity speakers * 1
    Keyboard  support Bluetooth  6 pin  optional
    Stylus support  optional
    Display
    screen 10.1‘‘ TFT IPS HD800*1280/FHD  1200*1920
    touch screen Support (5 point touch)
    Camera
    camera    2+8MP          5+8MP/  5+13MP  AF   Optional
    Battery
    capacity 9500mAh   Internal
    Platform
    operating system Windows 10
    Language
    Built-in language multi-lingual
    other
    Key features screenshots support
    Multimedia
    Media Players (Mp3) support
    recording support
    MP3 audio format support MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
    video Mpeg1, Mpeg2, Mpeg4 SP/ASP GMC, XVID, H.263, H.264 BP/MP/HP, WMV7/8, WMV9/VC1 BP/MP/AP, VP6/8, AVS, JPEG/MJPEG
    Accessories
    OTG line 1
    Data cable 1
    charger 1
    Certification
    CE/ROHS TBD
    FCC(HAC) TBD
    CTA TBD
