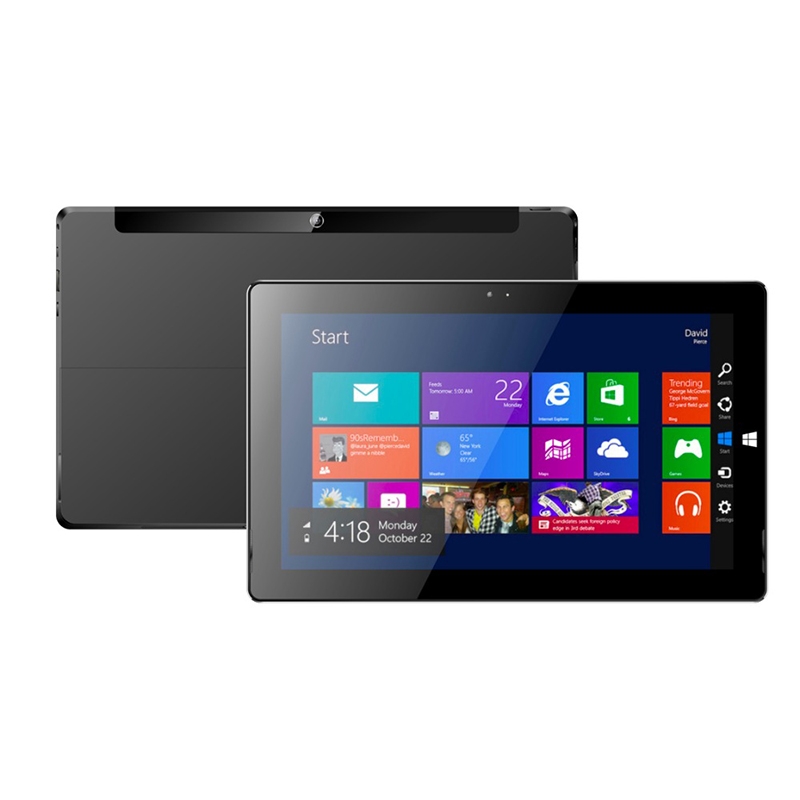

W101-10.1 inch windows tablet

●CPU:Intel Baytrail-T(Quad-core), Z8350, 1.33Ghz-1.8GHz
●OS: Windows 10 ; Support Flash 11.1
●LCD: 10.1inch original IPS screen 1280*800
●TP: Multi-point touch screen
●RAM: 2GB/4GB DDR3
●Hard Disk: 32GB /64GB Nand Flash
●Battery: 6000-8000mAh/3.7V Lithium
●Build-in Camera: Front 2.0 Mega
●Network: WiFi: 802.11b/g/n; BT 4.0
●SD Card Slot: 1x TF card slot
●USB:1×Mini USB
●DC:1×2.5mm DC jack; 5V/ 2A
●1*Earphone Jack (3.5mm)
Inquire Now Prev Product
    System Physical Standard Configuration:
    Type Details Descriptions
    Product Form Product Form 2 in 1
    Dimensions 258*173*9mm /258*173*8.5mm
    Weight tablet:597gkeyboard:563g
    LCD Screen Size 10.1‘   10:16
    Screen Resolution 1280*800/1920*1200 IPS Screen
    electromagnetic screen Digital pen of handwriting (optional)
    TP Touch Module  10 Point Capacitive
    Battery  Type Lithium-ion polymer battery
    Capacity 3.7V/6000-8000mAh
    Endurance 6-8 Hours
    System hardware configuration:
    Type Details Descriptions
    CPU Type Cherry Trail Z8300/Z8350 /Apollo Lake N3350/N3450 /N4200 14nm
    Speed Up to 1.84GHZ(1/2 cores)
    Up to 1.6 GHZ(3/4 cores)
    GPU Type Intel HD Gen8·BLP 10/12 EU up t 600MHZ
    RAM Capacity LPDDR3 2G/4G(Optional)
    ROM  Flash Capacity eMMC 32GB/64GB/128GB(Optional)
    Camera Front  0.3MP/2.0MP(Optional)
    Rear  2.0MP/5.0MP(optional)
    Speaker Size Built-in 8Ω/0.8W speaker x 2
    GPS Internal YES
    G-sensor Built-in Gravity acceleration sensor
    Network Connections:
    Type Details Descriptions
    WIFI WIFI module WIFI 802.11/b/g/n or a/b/g/n+BT+(NFC optional)
    3G/4G network Built-in WCDMA (Fibocom H350) (900/2100mHz or 850/1900mHz) (optional)
    Ethernet Network MiNi USB switch to Ethernet Network Supportive
    Interface Configuration:
    Type Details Descriptions
    Memory card socket External memory Support SDHC/SDXC
    SIM  card socket Data supportive Full Size SIM
    USB interface Data transfer supportive Full size USB2.0
    USB interface Data transfer supportive  Micro USB
    Headphone jack  Music output ∮ 3.5mm standard headphone jack
    DC connector Power  ∮ 2.5MM power connector
    HDMI interface Video output HDMI Type C 1.4a
    Keyboard Input device Pogo pin connect
    Mouse Input device USB、BT Expuntable Wired / Wireless Supportive
    Necessary Accessories:
    Type Details Descriptions
    3.5-inch headphone Standard Configuration Standard stereo headphones
    Power adapter Standard Configuration DC 5V/2A
    USB patch cord Standard Configuration  HOST
    Software Configuration:
     Type Details Descriptions
    Operating System Operating system version  Windows10
    office yes
