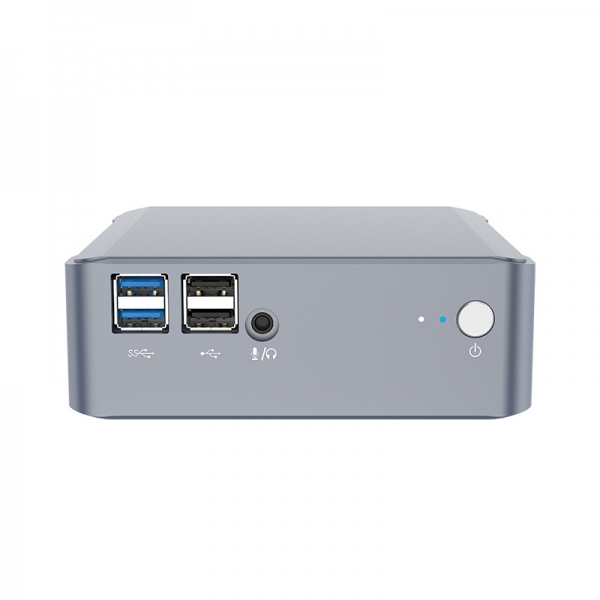

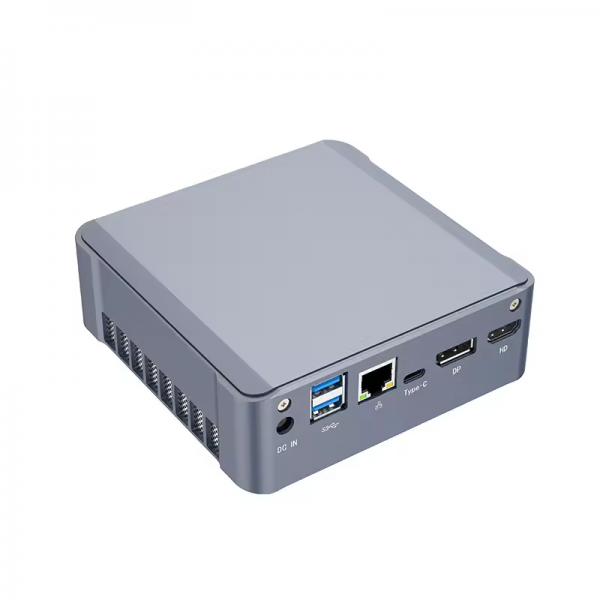

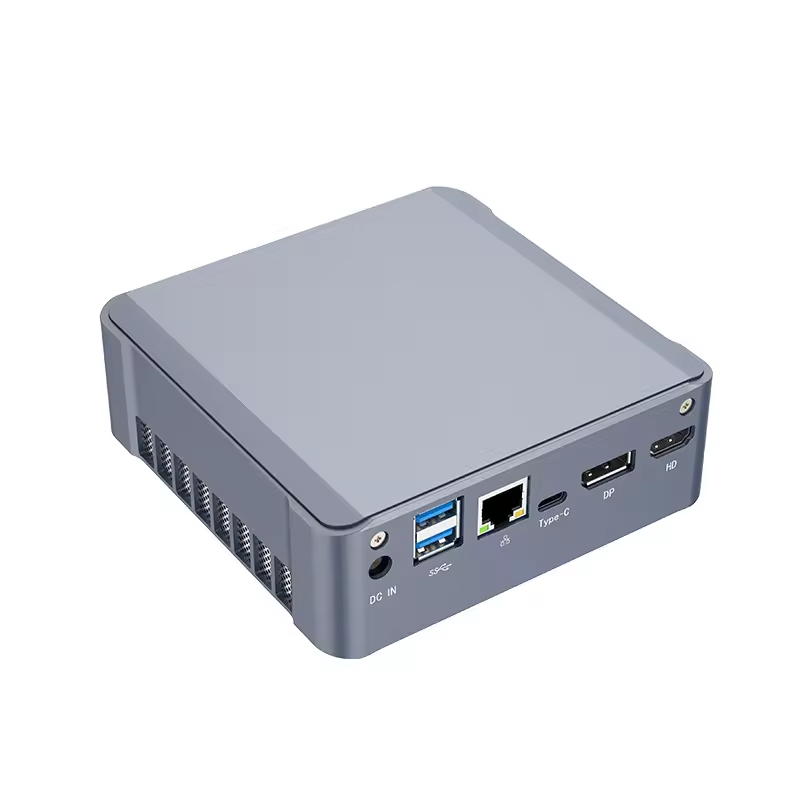

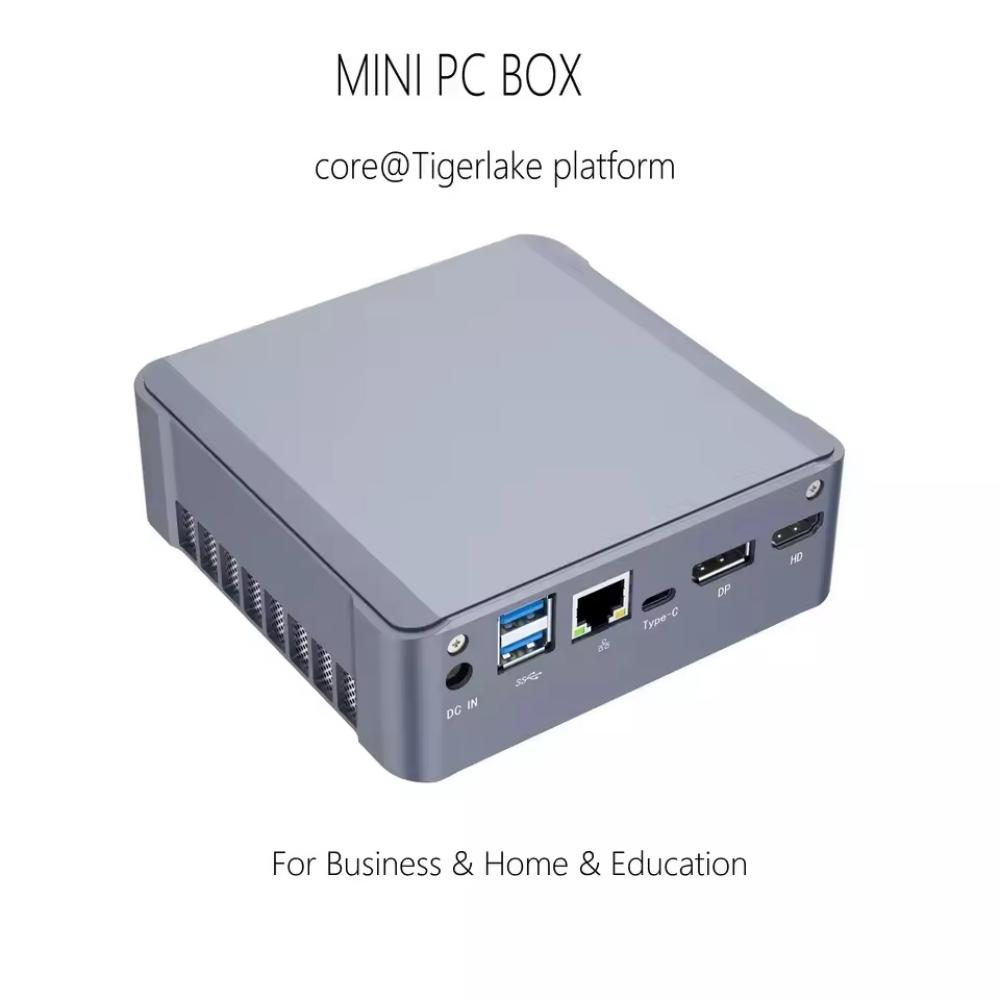

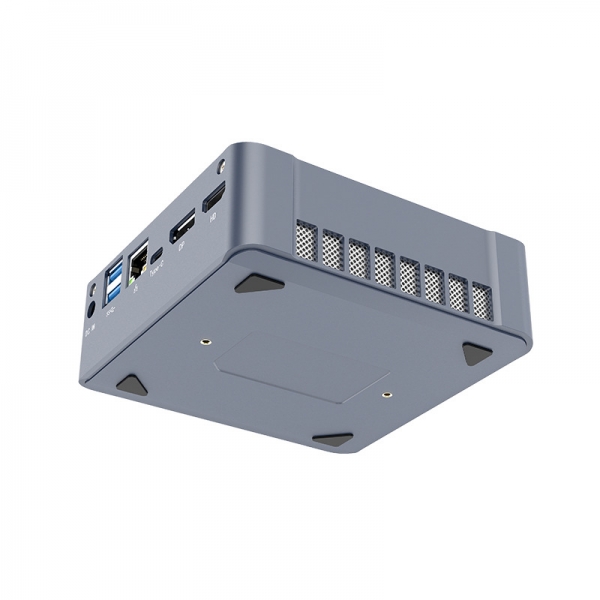

Windows Mini PC MU03

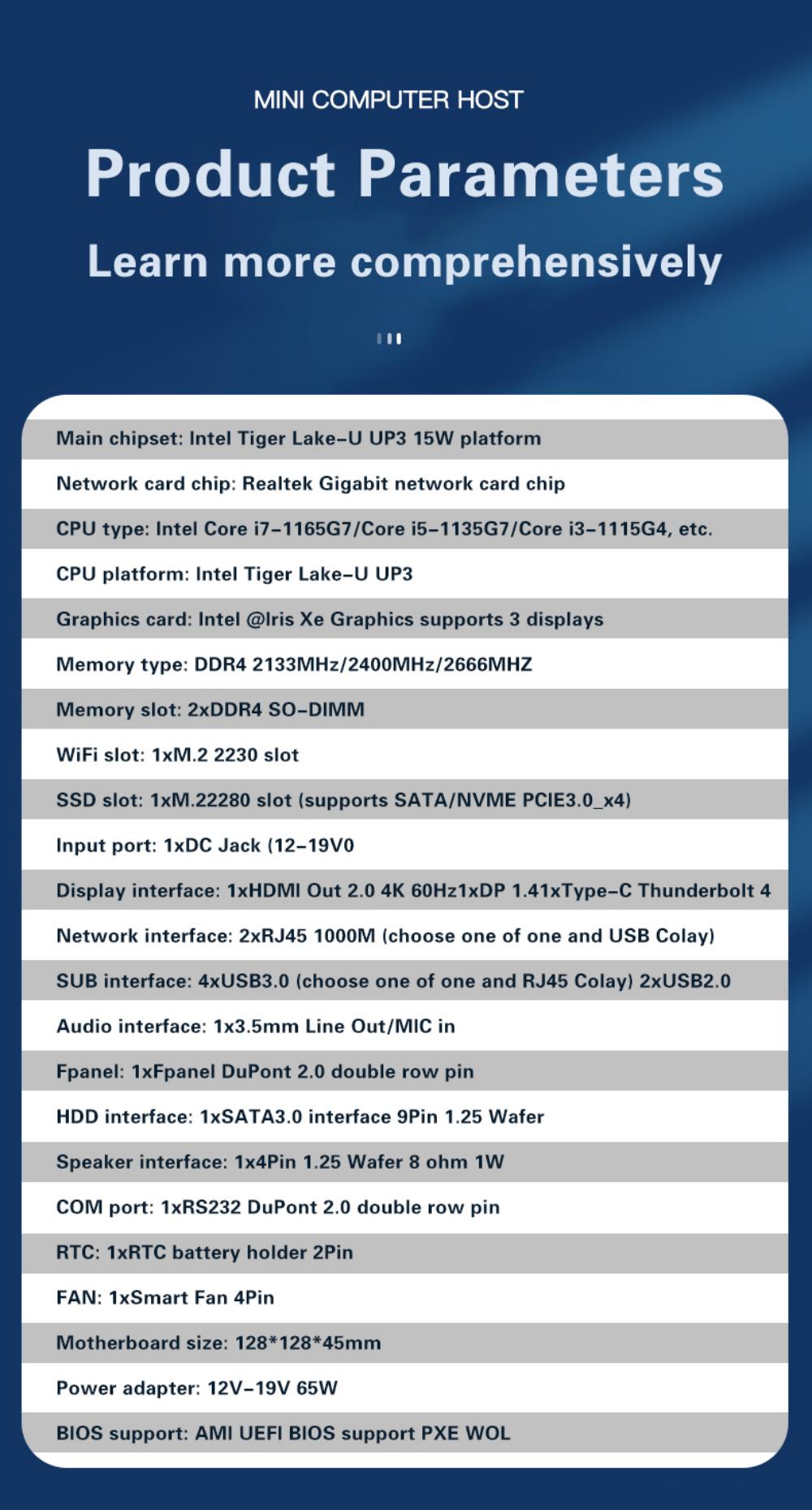

Main chipset: Intel Tiger Lake-U UP3 15W platform

Network card chip:Realtek Gigabit network card chip

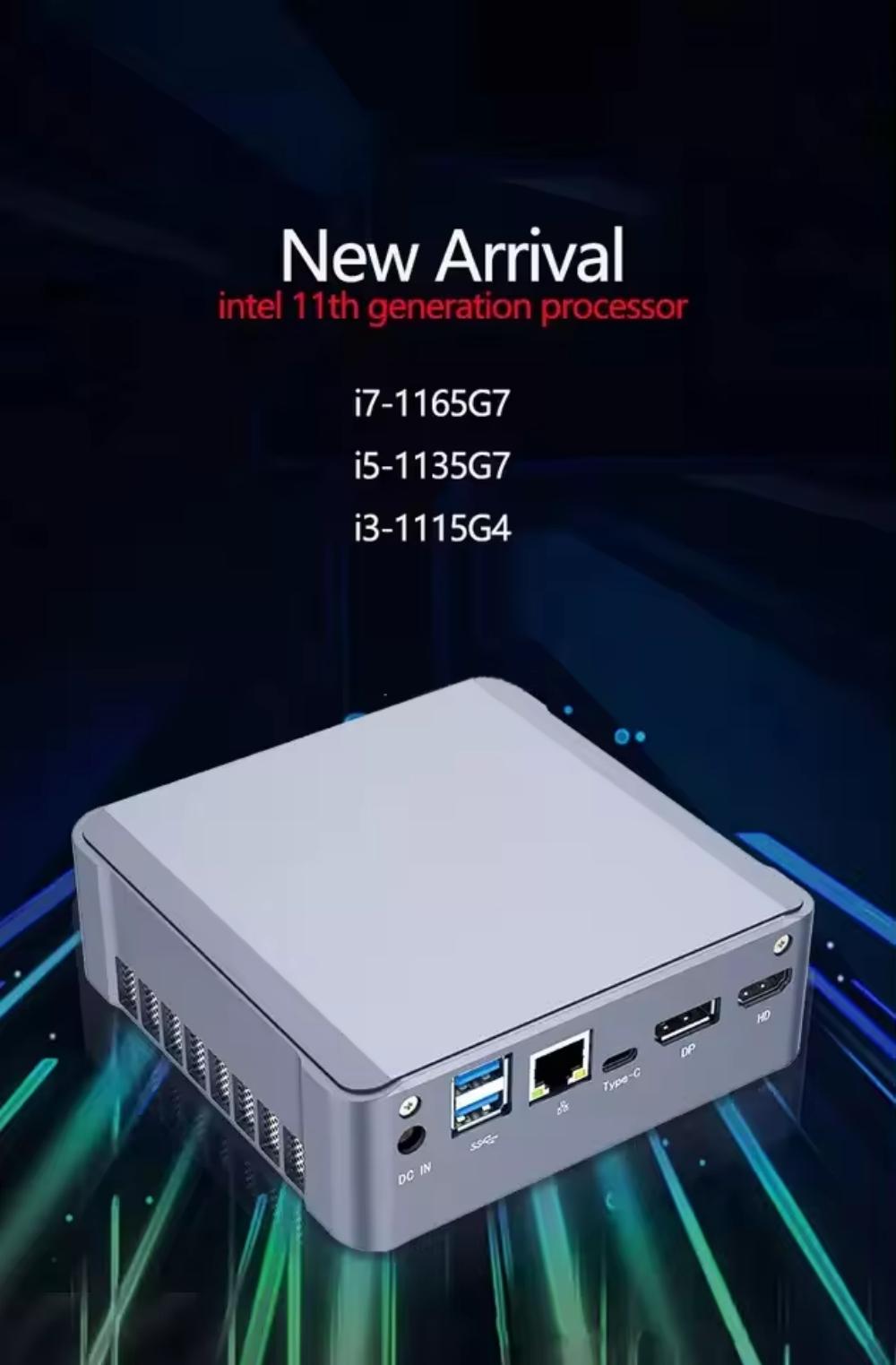

CPU type: Intel Core i7-1165G7/Core i5-1135G7/Core i3-1115G4, etc.

CPU platform: Intel Tiger Lake-U UP3

Graphics card: Intel @lris Xe Graphics supports 3 displays

Memory type: DDR4 2133MHz/2400MHz/2666MHZ

Memory slot: 2xDDR4 SO-DIMM

WiFi slot: 1xM.2 2230 slot

SSD slot: 1xM.22280 slot (supports SATA/NVME PCIE3.0_x4)

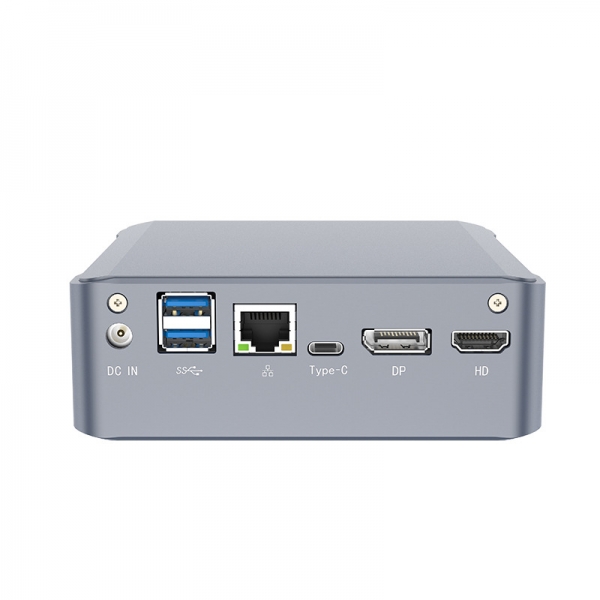

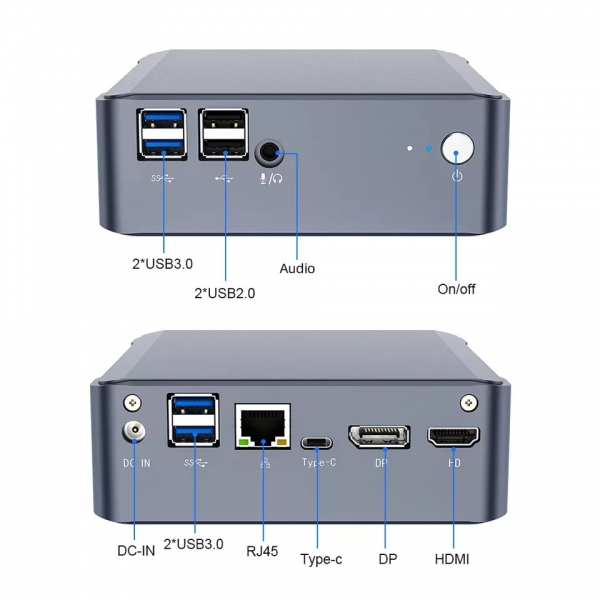

Input port: 1xDC Jack (12-19V0

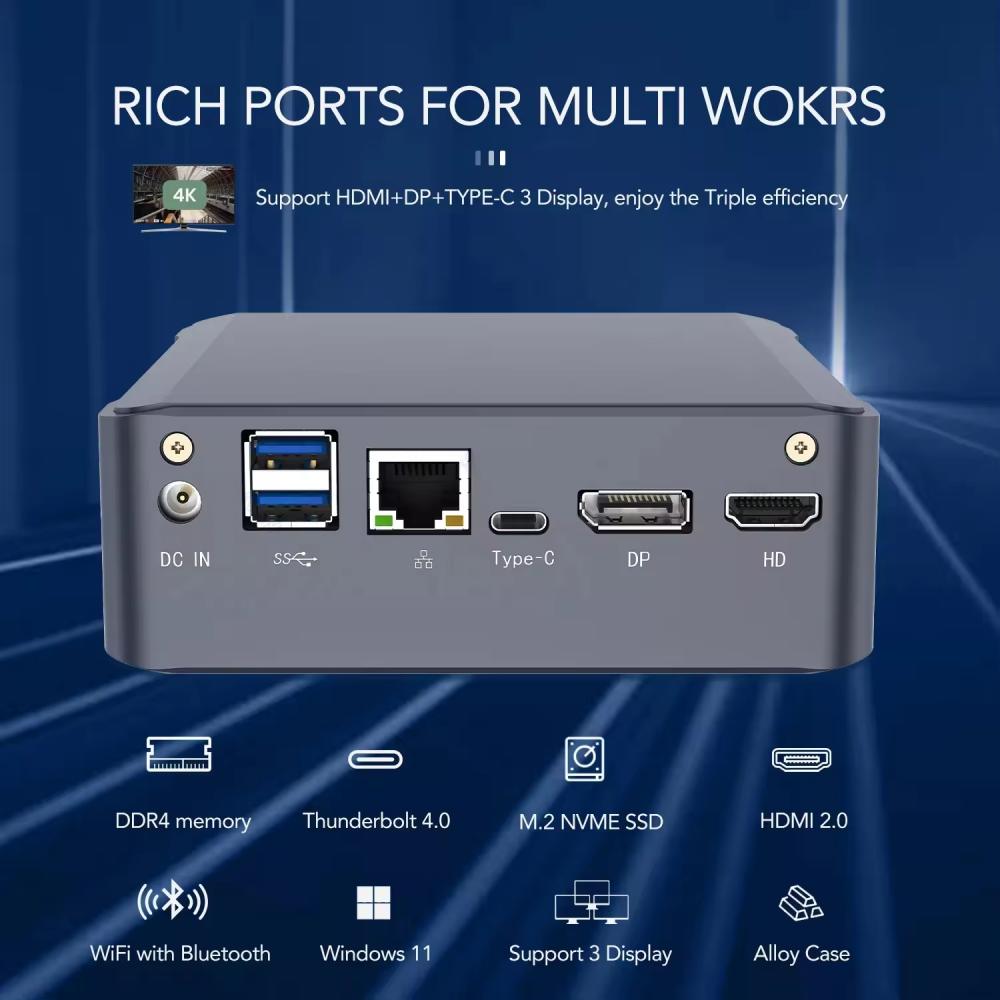

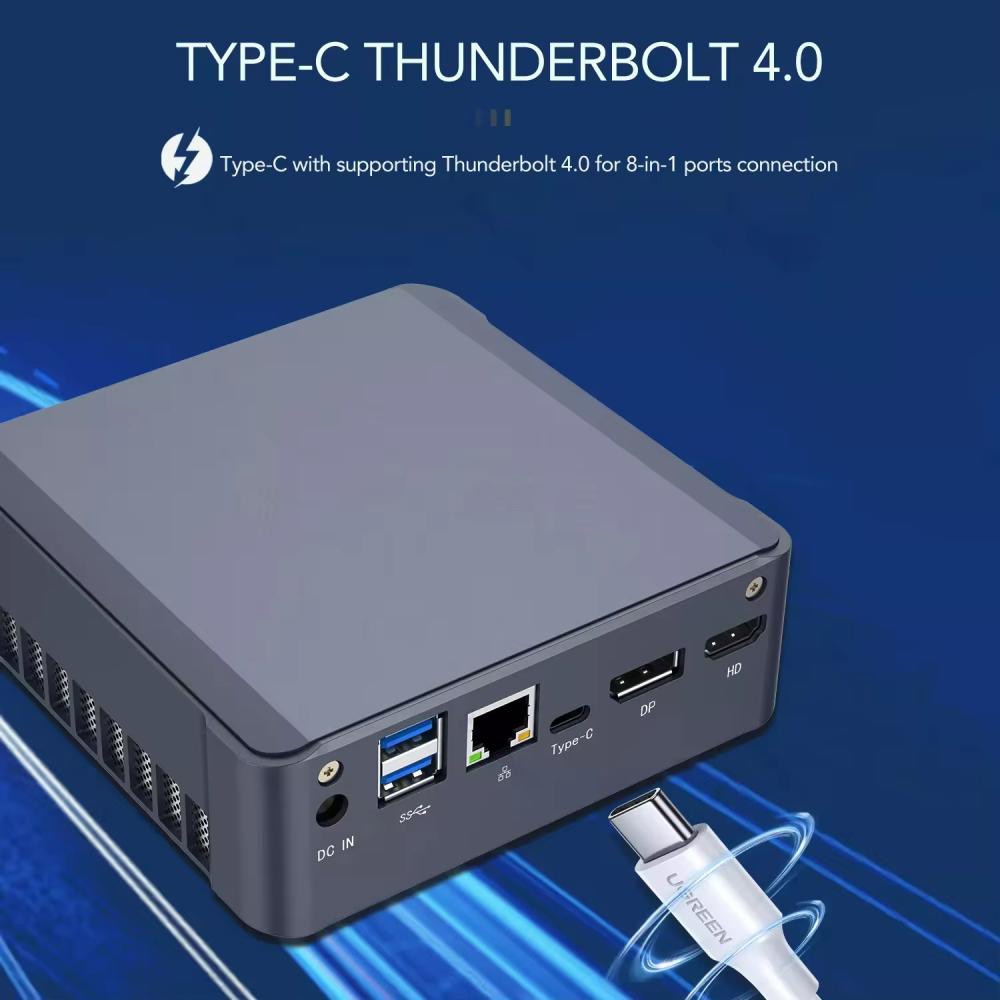

Display interface: 1xHDMl Out 2.0 4K 60Hz1xDP 1.41xType-c Thunderbolt 4

Network interface: 2xRJ45 1000M (choose one of one and USB Colay)

SUB interface: 4xUSB3.0 (choose one of one and RJ45 Colay) 2xUSB2.0

Audio interface:1x3.5mm Line Out/MlC in

Fpanel:1xFpanel DuPont 2.0 double row pin

HDD interface: 1xSATA3.0 interface 9Pin 1.25 Wafer

Speaker interface:1x4Pin 1.25 Wafer 8 ohm 1W

COM port:1xRS232 DuPont 2.0 double row pin

RTC: 1xRTC battery holder 2Pin

FAN: 1xSmart Fan 4Pin

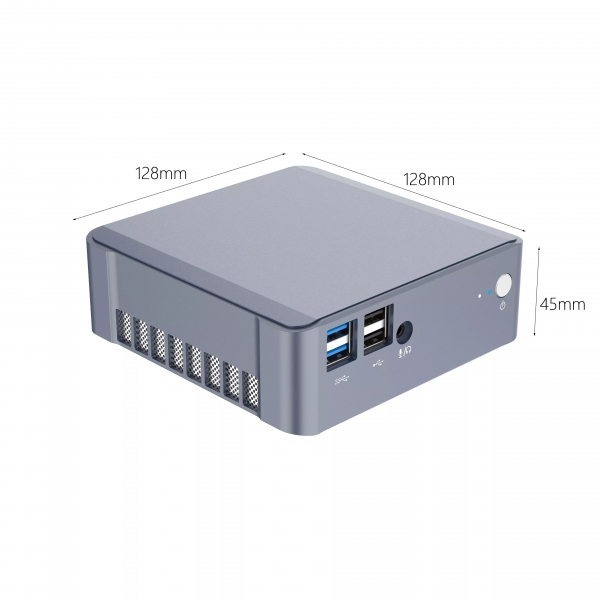

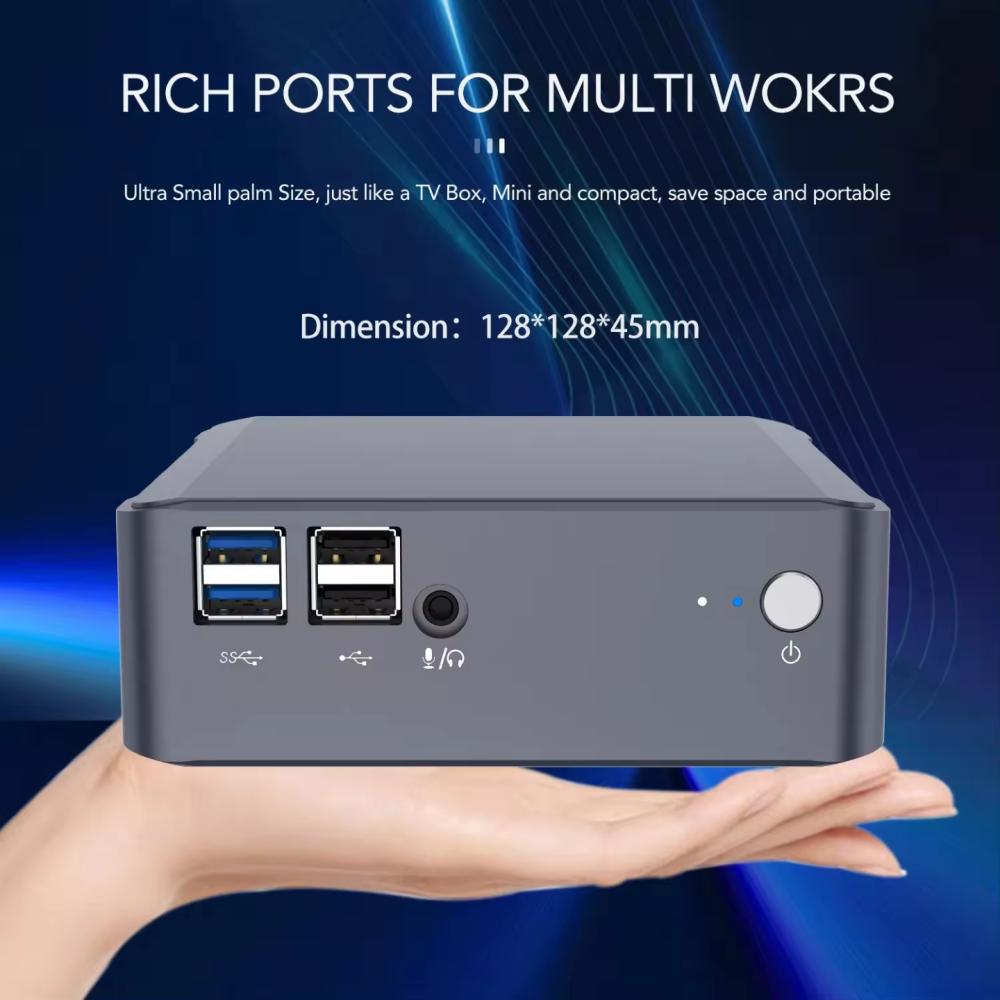

Motherboard size: 128*128*45mm

Power adapter:12V-19V 65W

BIOS support: AMI UEFI BIOS support PXE WOL
